34-1/2"L x 1"W x 1-5/8"H

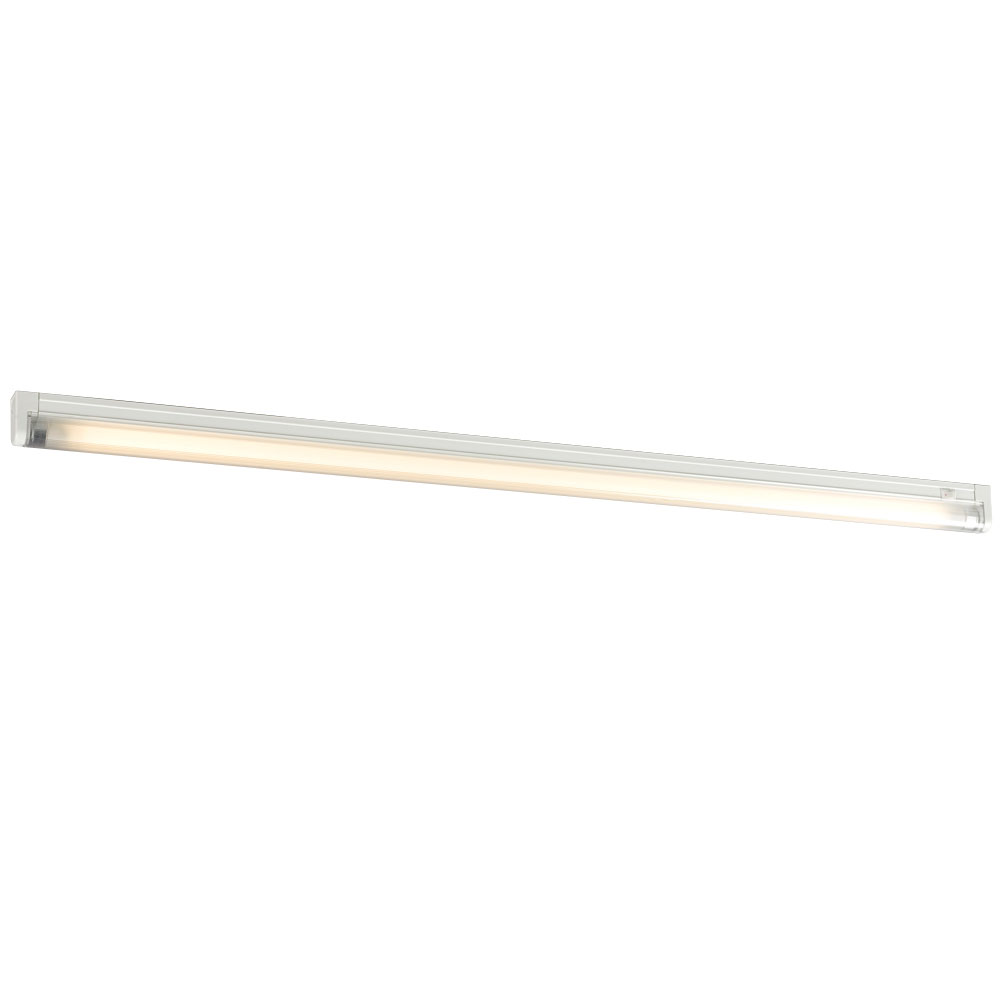

Fluorescent Under Cabinet Strip Light with On/Off Switch





Remark: Contact factory for IES file.
Specifications
Model No.
420021WH
Category1
Under Cabinet Lighting
Category2
-
Collection
-
Finish
White
Glass/Shade
Acrylic Lens
Fixture Material
Steel & Acrylic Lens

Diameter
-
Length
34.5"L
Width
1"W
Height
1.625"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
1
Lamp Wattage
21W
Lamp Type
T5, Bi-Pin
Power Factor
-
Color Temperature
3200K
Lamp included
Included
Dimming
-
Total Lumens
1575 lumens
Delivered lumens
1260 lumens
CRI
-

Dimmer List
-
Remark
Maximum Link 10pcs or 200W, Available accessories (Sold Separately) 4200WH-CON-B (connector box), 4200WH-CORD-6 (6-foot cord, 72"L), 4200WH-CW-6, -12, -24 (connector cord)
Location
Dry
ENERGY STAR
No
Fluorescent
Yes
Safety Listings
CSA or Equivalent

UPC
775379071820
Box Code 39
420021WH/25
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
1"W
Glass Diameter
33.5"D
Glass Height
0.75"H
Glass Extension
-

Unit Box Length
36"L
Unit Box Width
1.75"W
Unit Box Height
1"H
Unit Net Weight
0.77 lbs
Unit Gross Weight
0.93 lbs
Unit Cu. ft
0.036

Master Pack
25
Master Box Length
36.625"L
Master Box Width
9.875"W
Master Box Height
5.75"H
Master Gross Weight
25.2 lbs
Master Cu. ft
1.203
