58"L x 1"W x 1-3/4"H

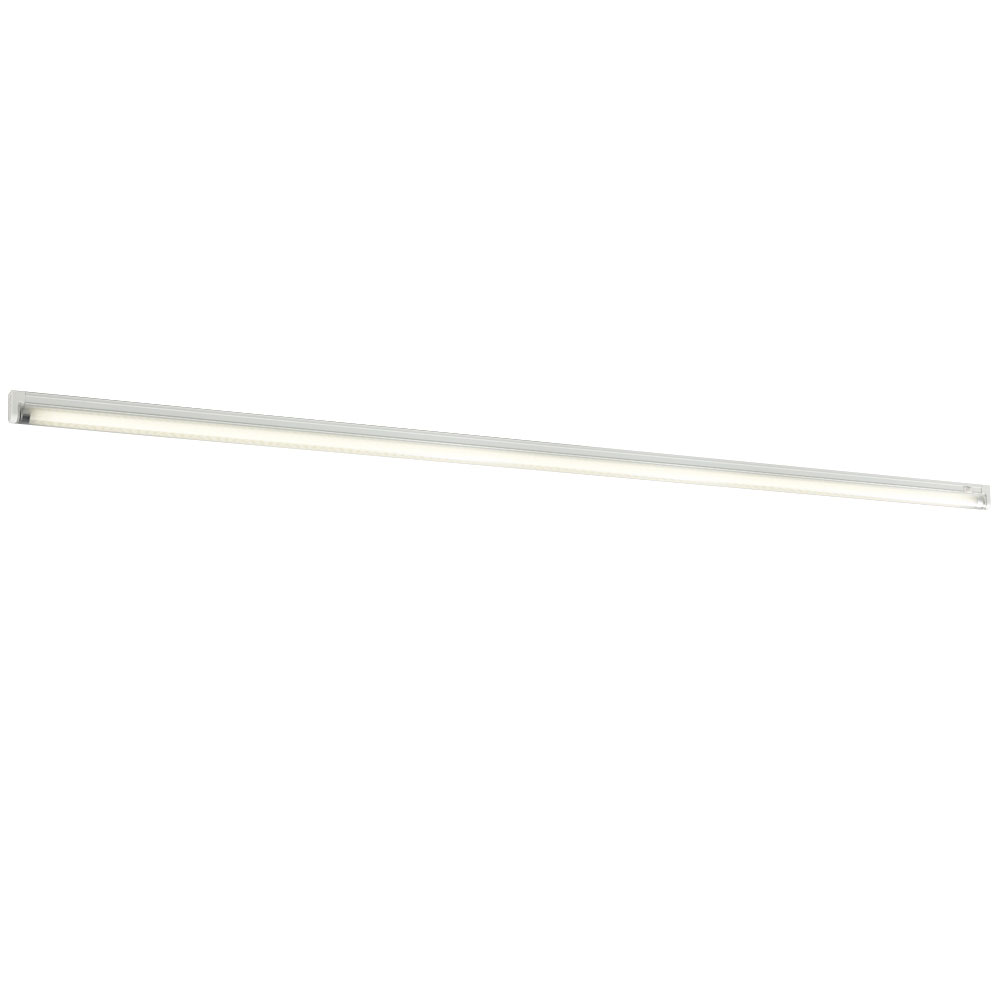

Fluorescent Under Cabinet Strip Light with On/Off Switch





Remark: Contact factory for IES file.
Specifications
Model No.
420135WH
Category1
Under Cabinet Lighting
Category2
-
Collection
-
Finish
White
Glass/Shade
Acrylic Lens
Fixture Material
Steel & Acrylic Lens

Diameter
-
Length
58"L
Width
1"W
Height
1.75"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
1
Lamp Wattage
35W
Lamp Type
T5, Bi-Pin
Power Factor
-
Color Temperature
4100K
Lamp included
Included
Dimming
-
Total Lumens
3200 lumens
Delivered lumens
2560 lumens
CRI
-

Dimmer List
-
Remark
Maximum Link 10pcs or 200W, Available accessories (Sold Separately) 4200WH-CON-B (connector box), 4200WH-CORD-6 (6-foot cord, 72"L), 4200WH-CW-6, -12, -24 (connector cord)
Location
Dry
ENERGY STAR
No
Fluorescent
Yes
Safety Listings
CSA or Equivalent

UPC
775379071851
Box Code 39
420135WH/12
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
1"W
Glass Diameter
57.25"D
Glass Height
0.75"H
Glass Extension
-

Unit Box Length
59.5"L
Unit Box Width
1.75"W
Unit Box Height
1"H
Unit Net Weight
1.22 lbs
Unit Gross Weight
1.47 lbs
Unit Cu. ft
0.06

Master Pack
25
Master Box Length
60.25"L
Master Box Width
9.875"W
Master Box Height
5.75"H
Master Gross Weight
38.75 lbs
Master Cu. ft
1.98
