6-1/2"W x 11-1/8"H x 4-3/4"E

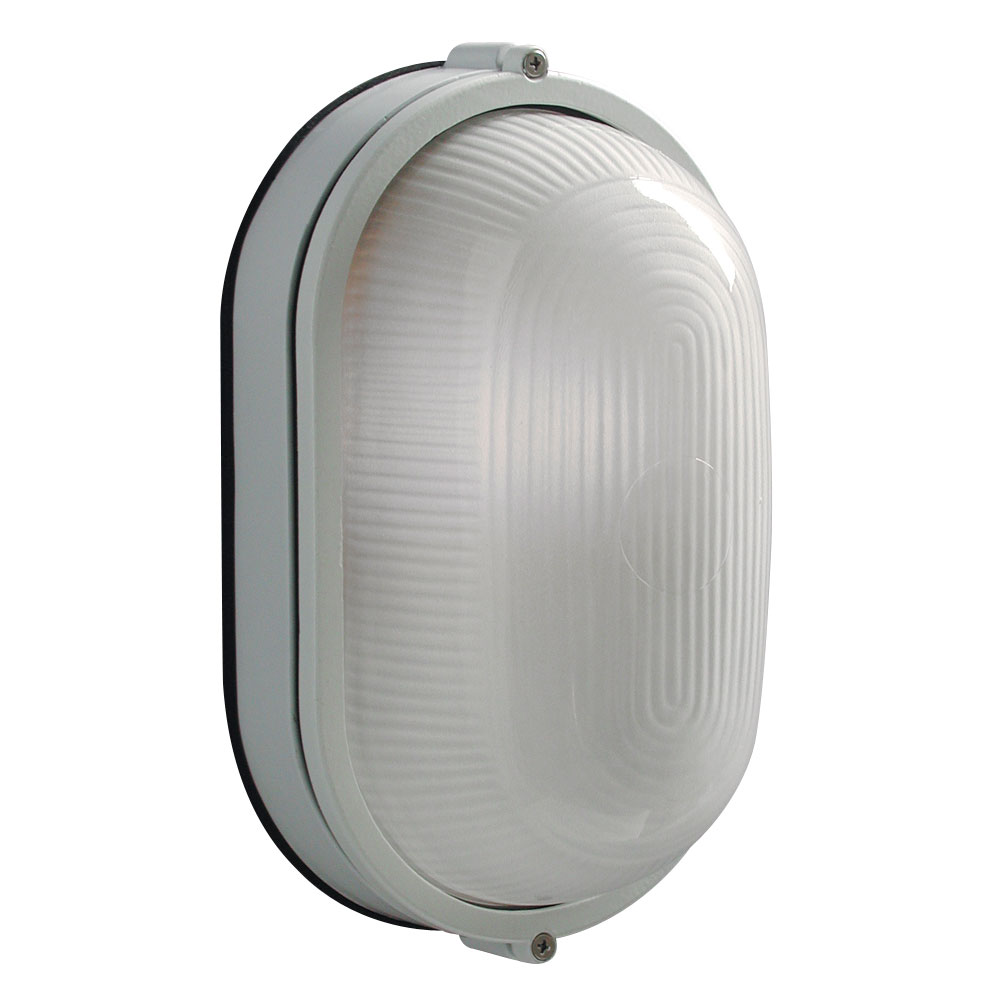

LED Outdoor Cast Aluminum Marine Light - in White finish with Frosted Glass (Wall or Ceiling Mount)





Remark: Contact factory for IES file.
Specifications
Model No.
L305113WH012A1
Category1
Outdoor Lighting, Outdoor Wall Mounts
Category2
Outdoor Lighting, Outdoor Ceiling Mounts
Collection
-
Finish
White
Glass/Shade
Frosted Glass
Fixture Material
Aluminum & Glass

Diameter
-
Length
-
Width
6.5"W
Height
11.125"H
Extension
4.75"E
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
12W
Lamp Type
LED
Power Factor
-
Color Temperature
3000K
Lamp included
Included
Dimming
Optional
Total Lumens
1140 lumens
Delivered lumens
798 lumens
CRI
80

Dimmer List
-
Remark
-
Location
Wet
ENERGY STAR
Yes
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
-
Box Code 39
-
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
7"L
Glass Width
2.3622"W
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
11.25"L
Unit Box Width
6.75"W
Unit Box Height
5.5"H
Unit Net Weight
2.7 lbs
Unit Gross Weight
3.35 lbs
Unit Cu. ft
0.242

Master Pack
6
Master Box Length
23.25"L
Master Box Width
20.625"W
Master Box Height
6.25"H
Master Gross Weight
29.37 lbs
Master Cu. ft
1.734
