22-5/8"L x 1"W x 1-3/8"H

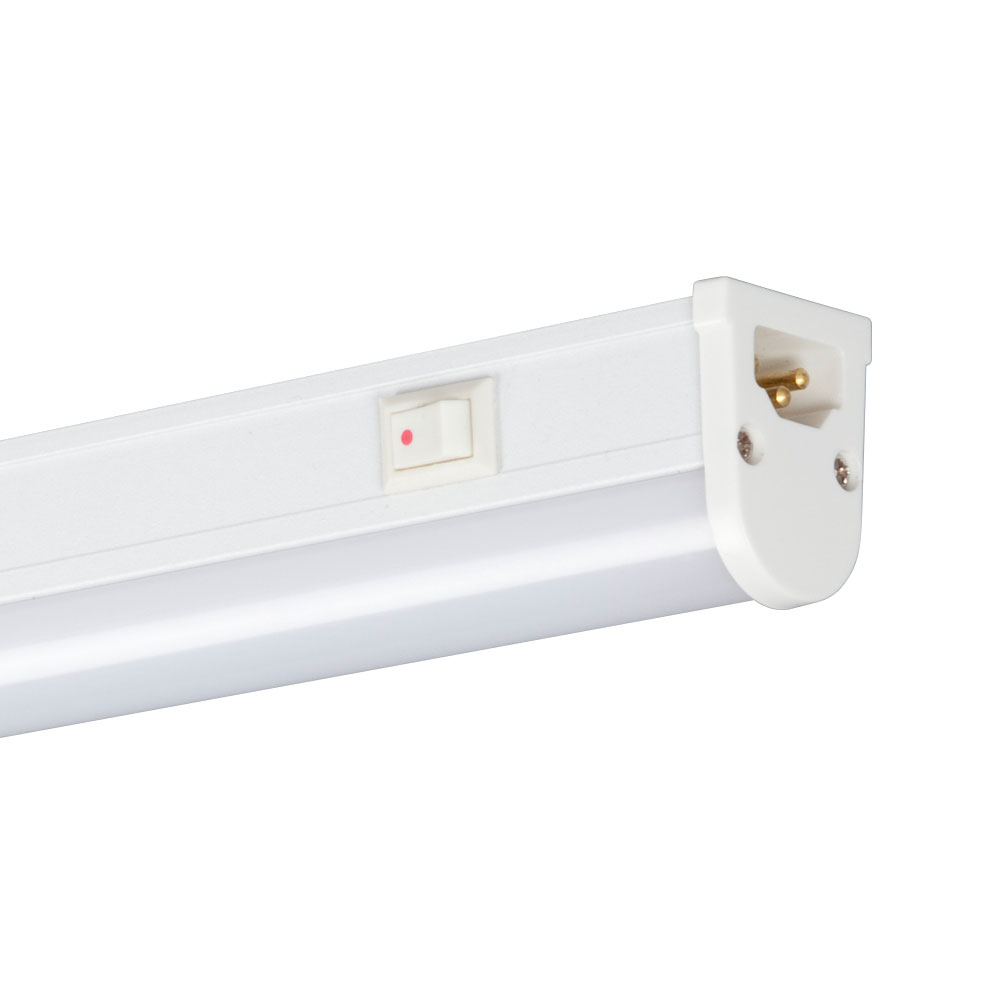

120V Dimmable LED Under Cabinet Mini Strip Light (Hardwire or Portable Plug-in) - in White finish 3000K (includes On/Off Switch)






Specifications
Model No.
L420824WH
Category1
Under Cabinet Lighting
Category2
-
Collection
-
Finish
White
Glass/Shade
Polycarbonate shatter-guard lens
Fixture Material
Aluminum & PC

Diameter
-
Length
22.625"L
Width
1"W
Height
1.375"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
9.42W
Lamp Type
LED Module
Power Factor
-
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
1130 lumens
Delivered lumens
924 lumens
CRI
80

Dimmer List
Leviton 6633-P, 6621-P, 6681, 6683, 6674, Lutron LGCL-153P, TGCL-153P, DVCL-153P, CTCL-153P,SCL-153P, DV-600P, S-600P, S-603P, TG600P, LG600P, MAW-600
Remark
Maximum Link 10pcs, Available accessories (Sold Separately) 4200WH-CON-B (connector box), 4200WH-CORD-6 (6-foot cord, 72"L), 4200WH-CW-6, -12, -24 (connector cord),LED Life 50,000 Hours
Location
Dry
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379079291
Box Code 39
L420824WH/50
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
24"L
Unit Box Width
1.125"W
Unit Box Height
1.375"H
Unit Net Weight
0.484 lbs
Unit Gross Weight
0.55 lbs
Unit Cu. ft
0.021

Master Pack
50
Master Box Length
24.5"L
Master Box Width
11.75"W
Master Box Height
7.75"H
Master Gross Weight
28.6 lbs
Master Cu. ft
1.291
