7-3/4"D x 2-3/4"H

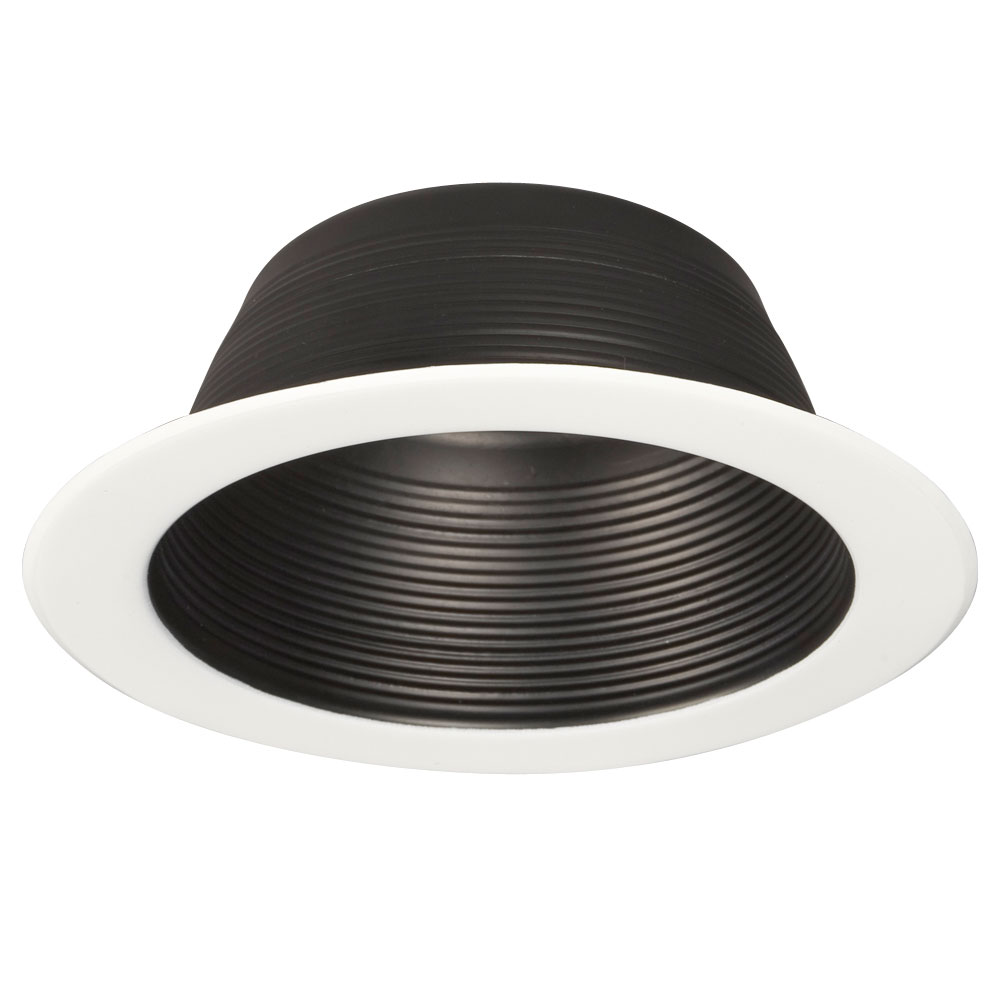

6" Line Voltage Step Baffle - Black





Remark: Contact factory for IES file.

Specifications
Model No.
509BLK
Category1
Recessed Lighting, 6" Housings & Trims
Category2
Recessed Lighting, Incandescent/Compact Fluorescent Housings & Trims
Collection
-
Finish
Black
Glass/Shade
-
Fixture Material
Steel & Plastic

Diameter
7.75"D
Length
-
Width
-
Height
2.75"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
1
Lamp Wattage
75W / 65W
Lamp Type
PAR30 / BR30
Power Factor
-
Color Temperature
-
Lamp included
Not Included
Dimming
-
Total Lumens
-
Delivered lumens
-
CRI
-

Dimmer List
-
Remark
-
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379500092
Box Code 39
509BLK/48
I 2 of 5
-
GTIN
00775379500092
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
-
Unit Box Width
-
Unit Box Height
-
Unit Net Weight
0.44 lbs
Unit Gross Weight
0.55 lbs
Unit Cu. ft
0.108

Master Pack
48
Master Box Length
16.5"L
Master Box Width
14.375"W
Master Box Height
17"H
Master Gross Weight
27.9 lbs
Master Cu. ft
2.333
Recessed Items
