12-1/8"L x 7-3/4"W x 3-5/8"H

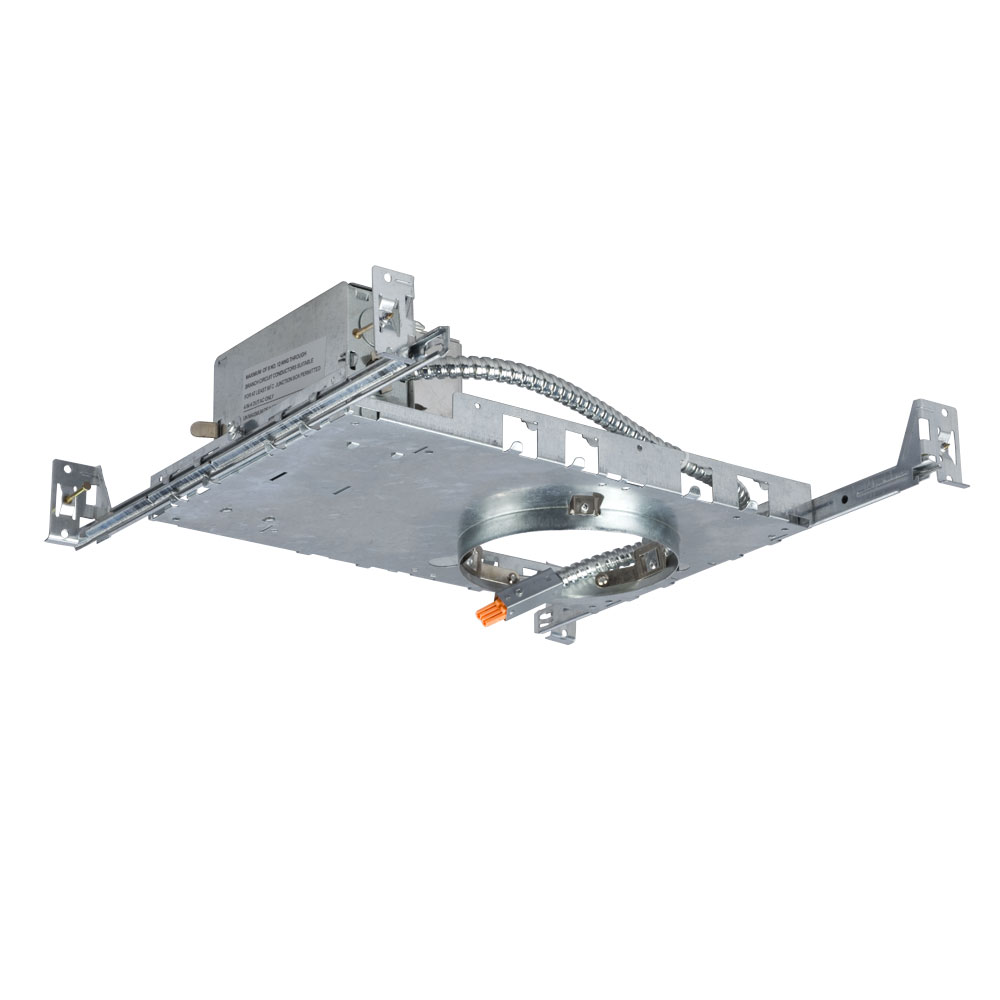

4" Commercial Plaster Frame (w/ Hangar Bars) / Driver / 21W / 120/277V / Dimmable 0-10V






Specifications
Model No.
RL-C4P-21
Category1
Recessed Lighting, 4" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
-
Glass/Shade
-
Fixture Material
-
Diameter
-
Length
12.125"L
Width
7.75"W
Height
3.625"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
21W
Lamp Type
-
Power Factor
>0.9
Color Temperature
-
Lamp included
Not Included
Dimming
-
Total Lumens
-
Delivered lumens
-
CRI
-
Dimmer List
-
Remark
Opening on fixture 4-7/8" Dia. Must be used with RL-C4CL-21 or RL-C4HZ-21,LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379083786
Box Code 39
RL-C4P-21/4
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
-
Unit Box Width
-
Unit Box Height
-
Unit Net Weight
2.5 lbs
Unit Gross Weight
2.6 lbs
Unit Cu. ft
0
Master Pack
4
Master Box Length
15.375"L
Master Box Width
15"W
Master Box Height
7.75"H
Master Gross Weight
11.88 lbs
Master Cu. ft
1.034
