12-1/8"L x 7-7/8"W x 3-5/8"H

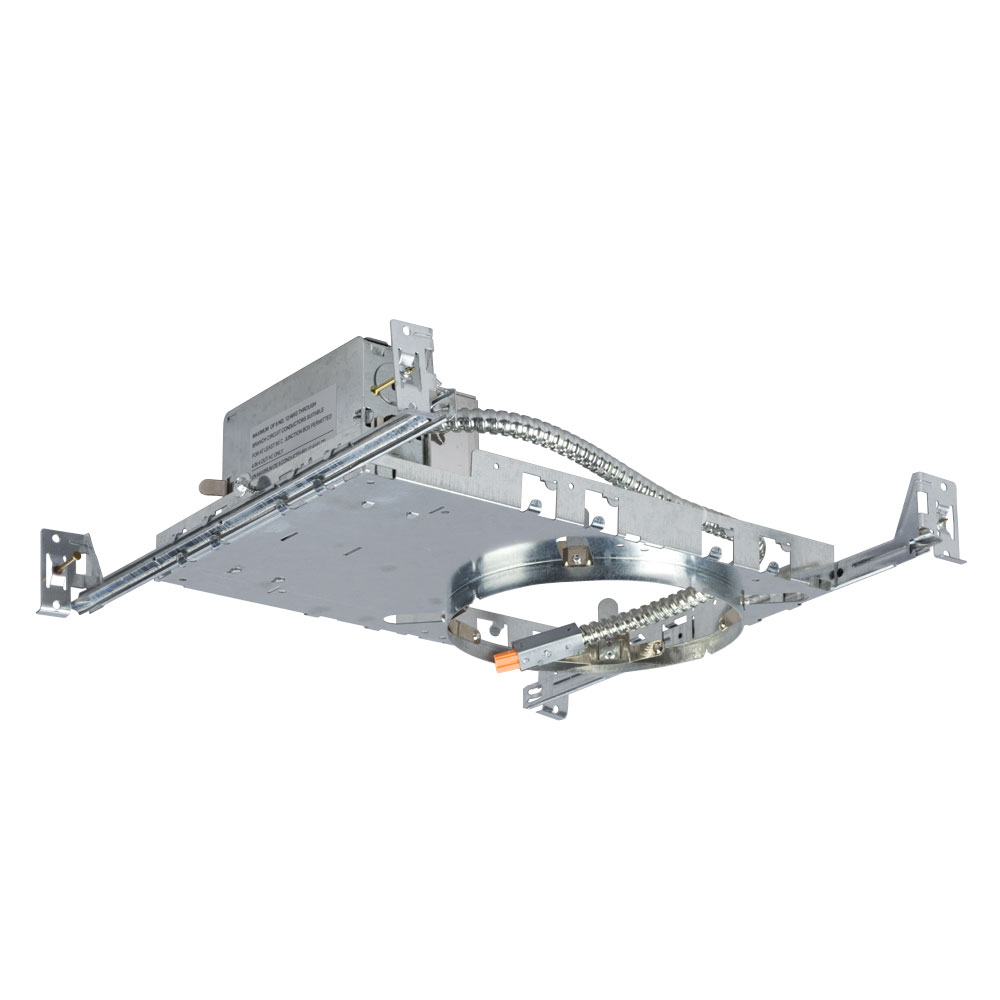

6" Commercial Plaster Frame (w/ Hangar Bars) / Driver / 28W / 120/277V / Dimmable 0-10V






Specifications
Model No.
RL-C6P-28
Category1
Recessed Lighting, 6" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
-
Glass/Shade
-
Fixture Material
Steel
Diameter
-
Length
12.125"L
Width
7.875"W
Height
3.625"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
28W
Lamp Type
-
Power Factor
>0.9
Color Temperature
-
Lamp included
Not Included
Dimming
-
Total Lumens
-
Delivered lumens
-
CRI
-
Dimmer List
-
Remark
Opening on fixture 6-3/8" Dia. Must be used with RL-C6CL-28 or RL-C6HZ-28,LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379082666
Box Code 39
RL-C6P-28/4
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
-
Unit Box Width
-
Unit Box Height
-
Unit Net Weight
2.59 lbs
Unit Gross Weight
2.69 lbs
Unit Cu. ft
0
Master Pack
4
Master Box Length
15.5"L
Master Box Width
15.25"W
Master Box Height
7.875"H
Master Gross Weight
12.276 lbs
Master Cu. ft
1.077
