7-7/8"D x 7-1/4"H

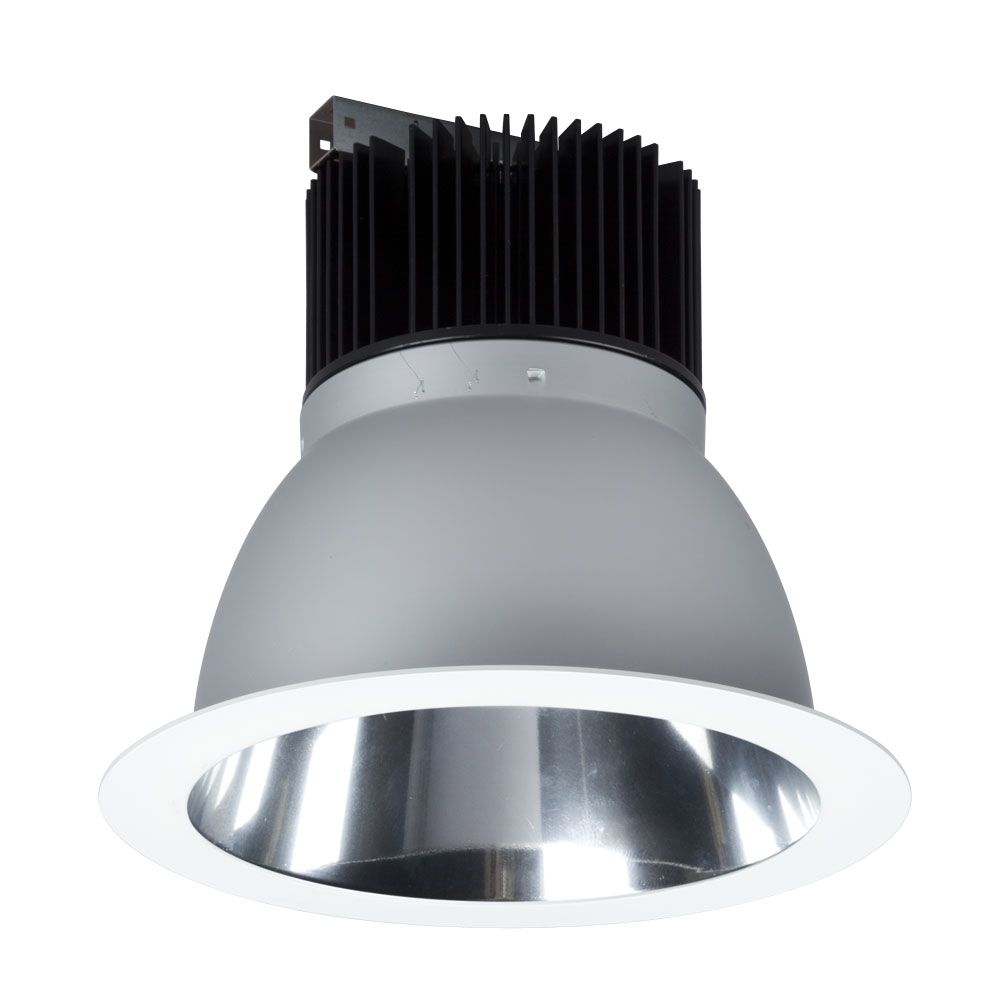

6" LED Chrome reflector Trim for Frame in Kit / LED Module 28W / 3000K / 80CRI / White Ring






Specifications
Model No.
RL-C6CL-28
Category1
Recessed Lighting, 6" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
WH/CH
Glass/Shade
-
Fixture Material
Aluminum
Diameter
7.875"D
Length
-
Width
-
Height
7.25"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
28W
Lamp Type
LED Module
Power Factor
>0.9
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-0-10V
Total Lumens
-
Delivered lumens
2440 lumens
CRI
80
Dimmer List
Lutron DVCL-253P-WH, Lutron NFTV (0-10V), Lutron NTSTV-DV (0-10V), Legrand CD4FBLW (0-10V)
Remark
0-10V Dimming,LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379083090
Box Code 39
RL-C6CL-28/4
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
8.125"L
Unit Box Width
8.125"W
Unit Box Height
7.625"H
Unit Net Weight
1.32 lbs
Unit Gross Weight
1.54 lbs
Unit Cu. ft
0.291
Master Pack
4
Master Box Length
17"L
Master Box Width
17"W
Master Box Height
8.125"H
Master Gross Weight
7.7 lbs
Master Cu. ft
1.359
