7-1/4"D x 1-1/2"H

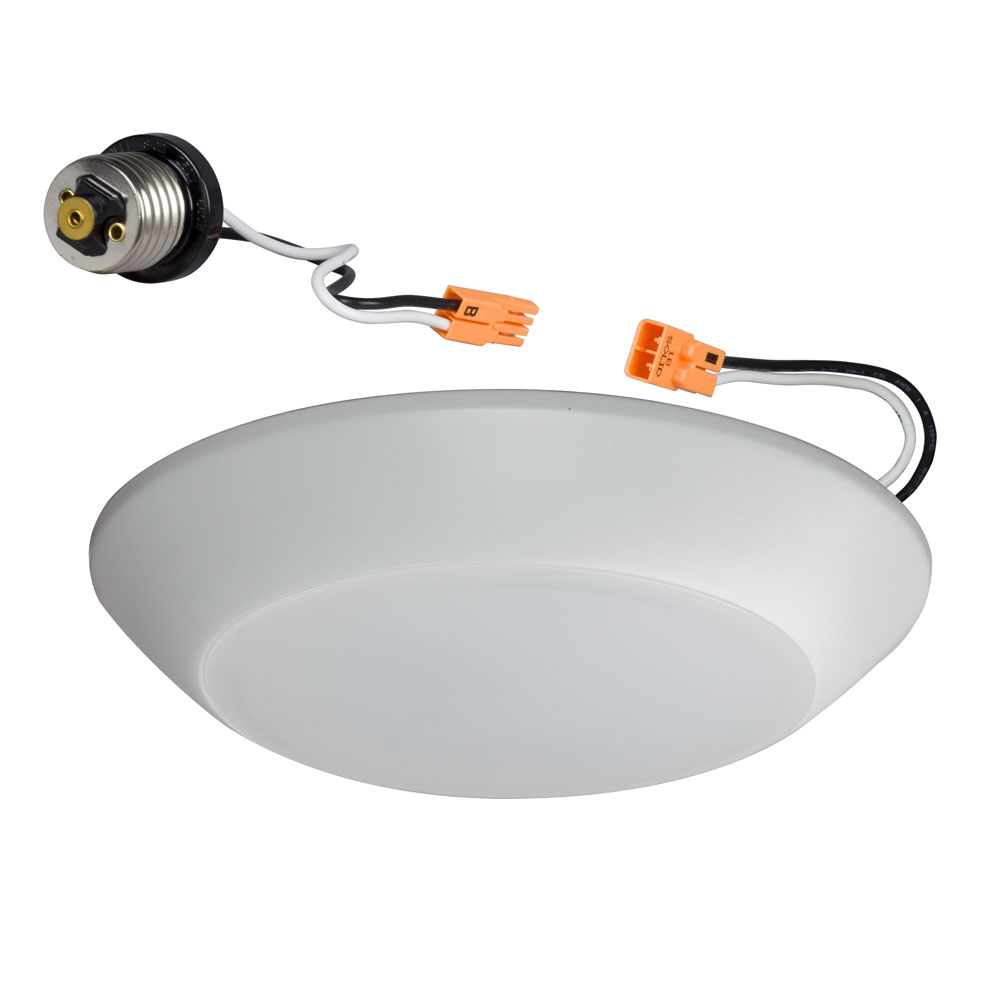

5"/6" AC LED Surface or Recessed Disk Light - in White Finish, Dimmable, 3000K - for LED RL-RT3000AT Housing and Compatible with Most 5" or 6" Standard Recessed Incandescent Housings when used with includeed Medium Base Socket Adaptor.






Specifications
Model No.
RL-C561WH
Category1
Recessed Lighting, 5"/6" Housings & Trims
Category2
Ceiling Fixtures, Flush Mounts
Collection
-
Finish
White
Glass/Shade
White Acrylic Lens
Fixture Material
Alum & PC

Diameter
7.25"D
Length
-
Width
-
Height
1.46"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
16W
Lamp Type
120V AC LED Module
Power Factor
>0.9
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
-
Delivered lumens
950 lumens
CRI
90

Dimmer List
Lutron DSL06, TGCL-153P, DVCL-153P, PD-6WCL, MACL-153M, CTCL-153P, Leviton 6672, 6674.
Remark
LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379083489
Box Code 39
RL-C561WH/10
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
7.875"L
Unit Box Width
7.875"W
Unit Box Height
2.75"H
Unit Net Weight
0.792 lbs
Unit Gross Weight
0.946 lbs
Unit Cu. ft
0.099

Master Pack
10
Master Box Length
16.375"L
Master Box Width
14.375"W
Master Box Height
8.625"H
Master Gross Weight
10.45 lbs
Master Cu. ft
1.175
Recessed Items
