7-1/4"D x 2-1/8"H

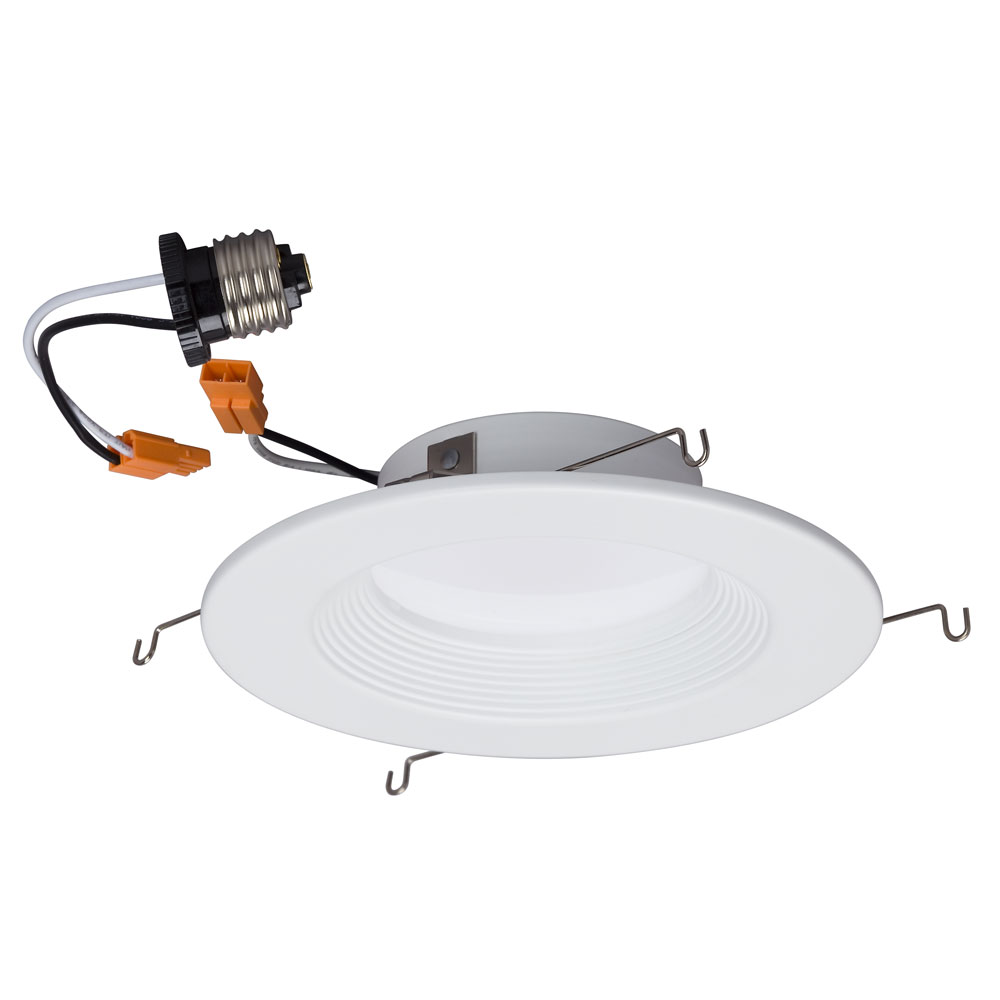

5"/6" AC LED Baffle Trim Downlight - in White finish, Driverless, Dimmable, 3000K - for RL-RT3000SAT Housing and Compatible with most 5" or 6" remodel or new construction housings when use with included Medium Base Socket Adaptor.






Specifications
Model No.
RL-R562WH
Category1
Recessed Lighting, 5"/6" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
Satin White
Glass/Shade
Acrylic Lens
Fixture Material
Alum & PC
Diameter
7.25"D
Length
-
Width
-
Height
2.125"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
15W
Lamp Type
120V AC LED Module
Power Factor
>0.9
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
-
Delivered lumens
1000 lumens
CRI
90
Dimmer List
Leviton 6672, 6674, RDL06, 752-DSM10, IPL06, Lurton SCL-153PH-WH, PWCL-153PH, DVCL-153P, CTCL-153P, S-600-WH-CSA, D-600, DSL06
Remark
LED Life 50,000 Hours
Location
Damp
ENERGY STAR
Yes
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379082000
Box Code 39
RL-R562WH/20
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
7.48"L
Unit Box Width
2.56"W
Unit Box Height
7.48"H
Unit Net Weight
0.44 lbs
Unit Gross Weight
0.55 lbs
Unit Cu. ft
0.083
Master Pack
20
Master Box Length
16"L
Master Box Width
13.5"W
Master Box Height
15.83"H
Master Gross Weight
12.32 lbs
Master Cu. ft
1.979
Recessed Items

RL-RT3000SAT

RS3000AT-LED

RS3000B

RS3000R

RS5000AT-LED

RS5000S
