6-3/4"D x 1"H

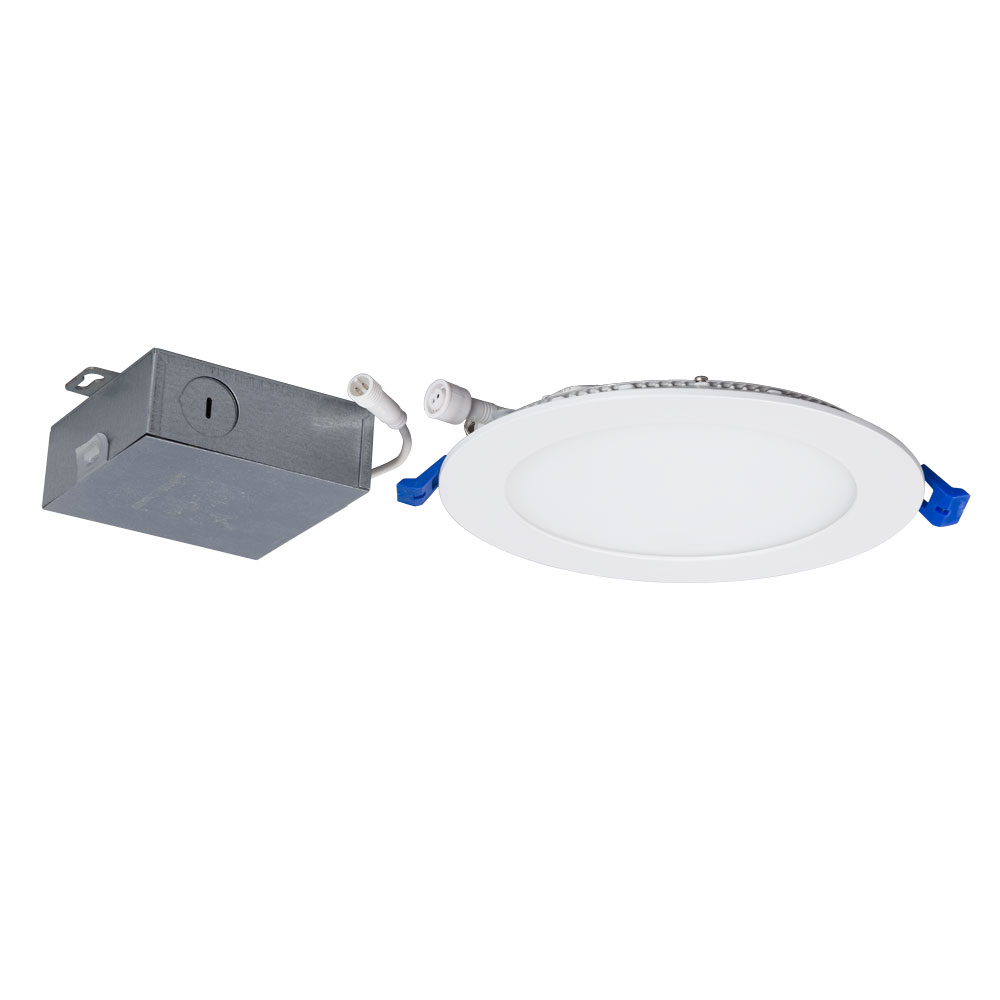

Dimmable 120V 6" LED IC Rated Slim Round Panel Light - in White Finish, 3000K, FT6 Wires






Specifications
Model No.
RL-RP509WH
Category1
-
Category2
-
Collection
-
Finish
White
Glass/Shade
White Acrylic Lens
Fixture Material
Alum & Acrylic Lens
Diameter
6.81"D
Length
-
Width
-
Height
1"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
12W
Lamp Type
LED Module
Power Factor
>0.9
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
-
Delivered lumens
900 lumens
CRI
80
Dimmer List
Leviton 6672, 6674, RDL06, 752-DSM10, IPL06, Lurton PWCL-153PH, DVCL-153P, CTCL-153P, S-600-WH-CSA, D-600, DSL06
Remark
LED Life 50,000 Hours
Location
Wet (Covered Ceiling Mount Only)
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379084332
Box Code 39
RL-RP509WH/18
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
4.92"D
Glass Height
-
Glass Extension
-
Unit Box Length
7"L
Unit Box Width
7"W
Unit Box Height
2.5"H
Unit Net Weight
0.88 lbs
Unit Gross Weight
1.1 lbs
Unit Cu. ft
0.071
Master Pack
18
Master Box Length
22.5"L
Master Box Width
15"W
Master Box Height
8"H
Master Gross Weight
19.8 lbs
Master Cu. ft
1.562
