5-1/2"D x 3-5/8"H

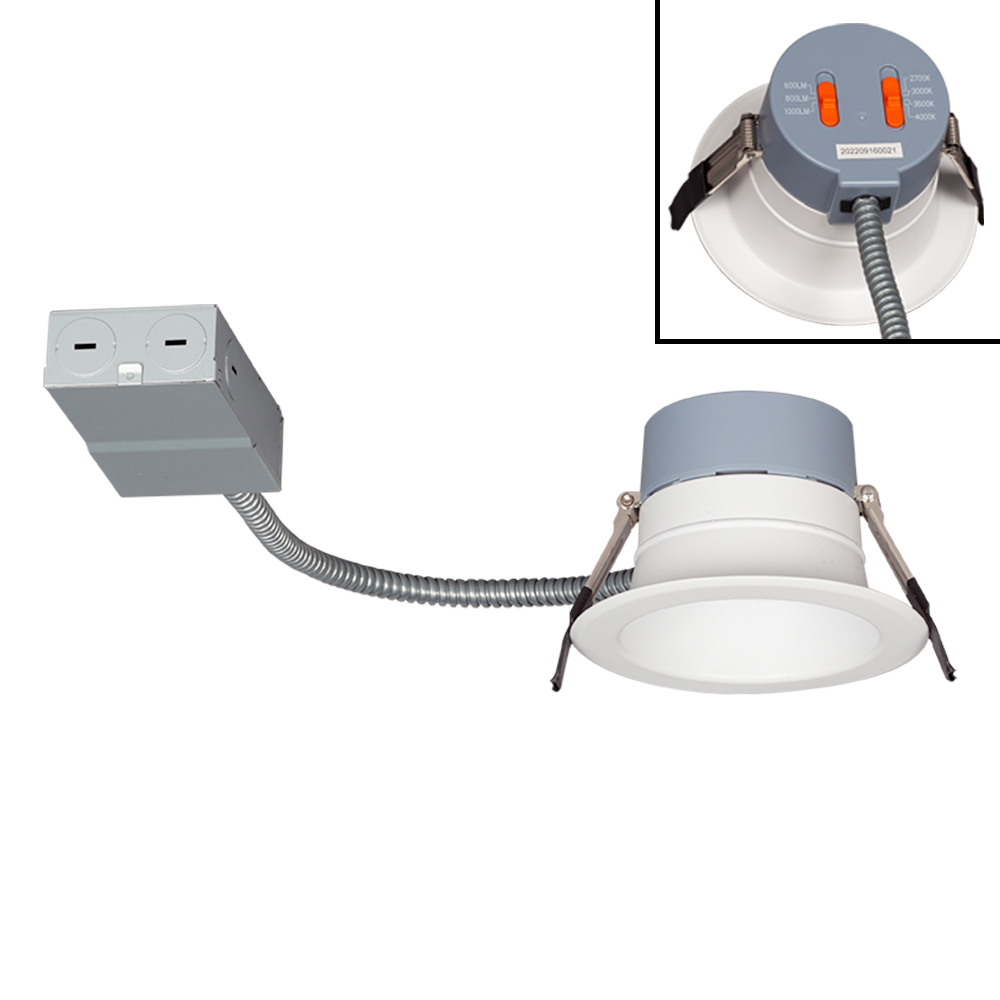

0-10V Dimmable 120-277V 4" IC Rated Commercial LED Downlight with Junction Box and Quick Connectors in White Finish Selectable Wattage and 4CCT






Specifications
Model No.
RL-RB415WH4C
Category1
-
Category2
-
Collection
-
Finish
White
Glass/Shade
PC
Fixture Material
Alum & PC
Diameter
5.5"D
Length
-
Width
-
Height
3.625"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
7W/10W/12W
Lamp Type
LED Module
Power Factor
>0.9
Color Temperature
3000K/3500K/4000K/5000K
Lamp included
Included
Dimming
Dimmable-0-10V
Total Lumens
-
Delivered lumens
700/1000/1200 lumens
CRI
90
Dimmer List
Leviton IP710-LFZ, DVSTV-WH, Lutron NTSTV-DV, Cooper DF10PC1
Remark
LED Life 50,000 Hours
Location
Wet (Covered Ceiling Mount Only)
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379085155
Box Code 39
RL-RB415WH4C/8
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
4.035"D
Glass Height
-
Glass Extension
-
Unit Box Length
7.75"L
Unit Box Width
7.75"W
Unit Box Height
5.25"H
Unit Net Weight
1.1 lbs
Unit Gross Weight
1.54 lbs
Unit Cu. ft
0.182
Master Pack
8
Master Box Length
16"L
Master Box Width
16"W
Master Box Height
11.25"H
Master Gross Weight
12.98 lbs
Master Cu. ft
1.667
