47-1/4"L x 5-1/4"W x 2-1/8"H

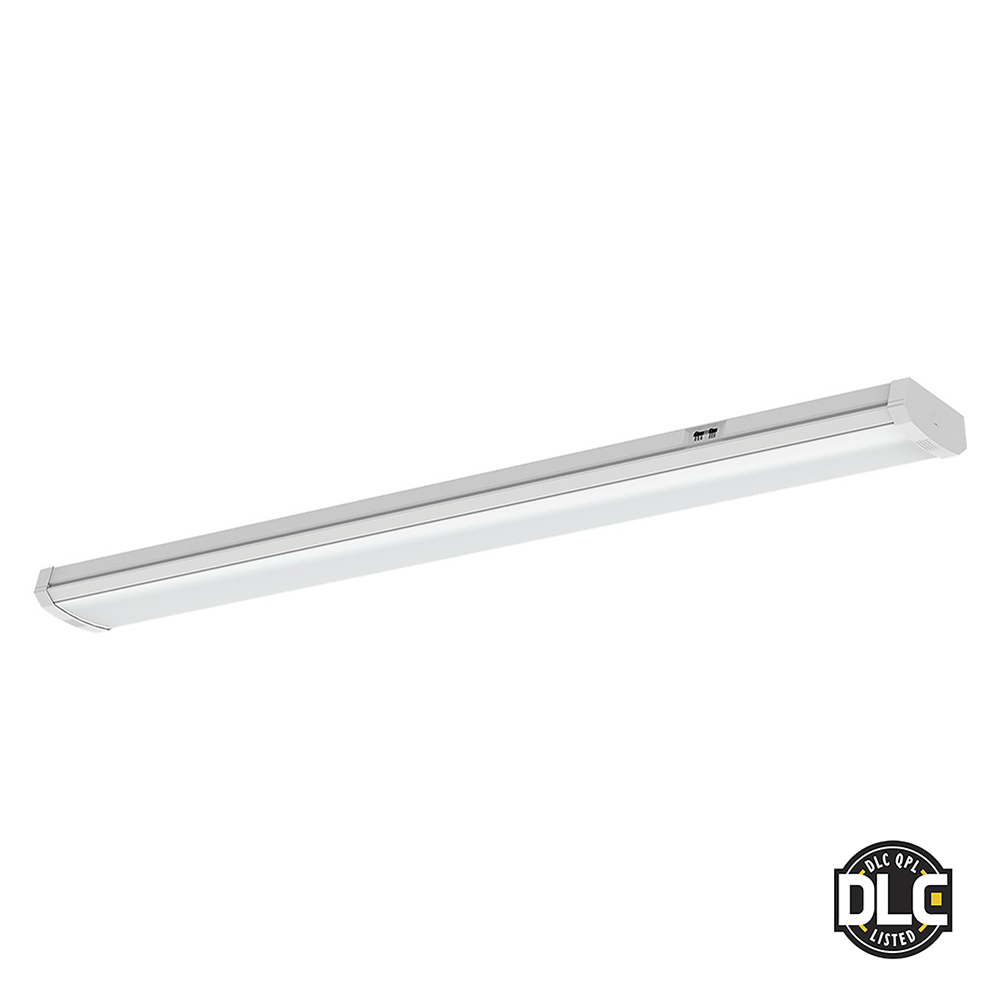

120-347V 4-Foot Linkable LED Wraparound Light Fixtue with Polycarbonate Lens 3 Power 3CCT 0-10V DIM DLC






Specifications
Model No.
L927448WH
Category1
Ceiling Fixtures
Category2
Bath & Vanity Lights
Collection
-
Finish
White
Glass/Shade
Polycarbonate Lens
Fixture Material
Steel & Polycarbonate

Diameter
-
Length
47.25"L
Width
5.25"W
Height
2.125"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
36/40/48W
Lamp Type
LED Module
Power Factor
>0.9
Color Temperature
30/40/50K
Lamp included
Included
Dimming
Dimmable-0-10V
Total Lumens
-
Delivered lumens
4500/5000/6000 lumens
CRI
80

Dimmer List
-
Remark
Fixtue comes with a 12" Connector Cord and a Linkable Connector. DLC#P9Y0M0PJ, Certified Model No. DSP-048T336WN-12E, LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
772775280955
Box Code 39
L927448WH/8
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
45.875"L
Glass Width
3.9375"W
Glass Diameter
-
Glass Height
0.375"H
Glass Extension
-

Unit Box Length
47.835"L
Unit Box Width
5.9"W
Unit Box Height
2.52"H
Unit Net Weight
3.3 lbs
Unit Gross Weight
3.96 lbs
Unit Cu. ft
0.412

Master Pack
8
Master Box Length
48.5"L
Master Box Width
13"W
Master Box Height
11"H
Master Gross Weight
34.1 lbs
Master Cu. ft
4.014
