7-1/4"D x 2-3/8"H

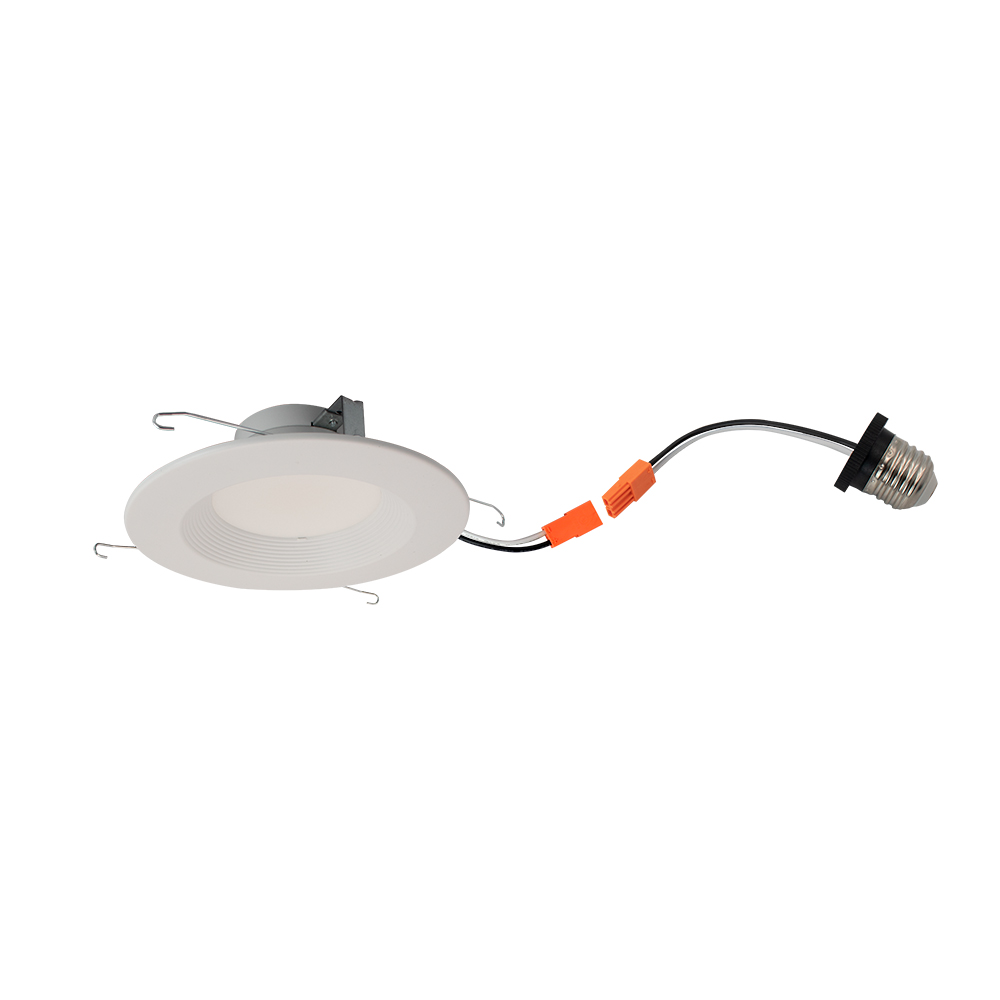

5"/6" AC LED Baffle Trim Downlight - in White finish, Driverless, Dimmable, 5CCT - for RL-RT3000AT Housing and Compatible with most 5" or 6" remodel or new construction housings when use with included Medium Base Socket Adaptor.






Specifications
Model No.
RL-R562WH5C
Category1
Recessed Lighting, 5"/6" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
Satin White
Glass/Shade
Acrylic Lens
Fixture Material
Alum & PC
Diameter
7.25"D
Length
-
Width
-
Height
2.375"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
15W
Lamp Type
120V AC LED Module
Power Factor
>0.9
Color Temperature
27/30/35/40/50K
Lamp included
Included
Dimming
Dimmable
Total Lumens
-
Delivered lumens
820/940/1000/1050/950 lumens
CRI
90
Dimmer List
Leviton 6672, 6674, Lutron CTCL-153PDH, CTCL-153P, CT-600P, DVCL-153P
Remark
LED Life 50,000 Hours
Location
Wet (Indoor Only)
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379085391
Box Code 39
RL-R562WH5C/20
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
8.3"L
Unit Box Width
2.6"W
Unit Box Height
7.5"H
Unit Net Weight
0.616 lbs
Unit Gross Weight
0.66 lbs
Unit Cu. ft
0.094
Master Pack
20
Master Box Length
17.125"L
Master Box Width
14.25"W
Master Box Height
16"H
Master Gross Weight
12.1 lbs
Master Cu. ft
2.26
Recessed Items

RL-RT3000SAT

RS3000AT-LED

RS3000B

RS3000R

RS5000AT-LED

RS5000S
