4"D x 2-1/2"H

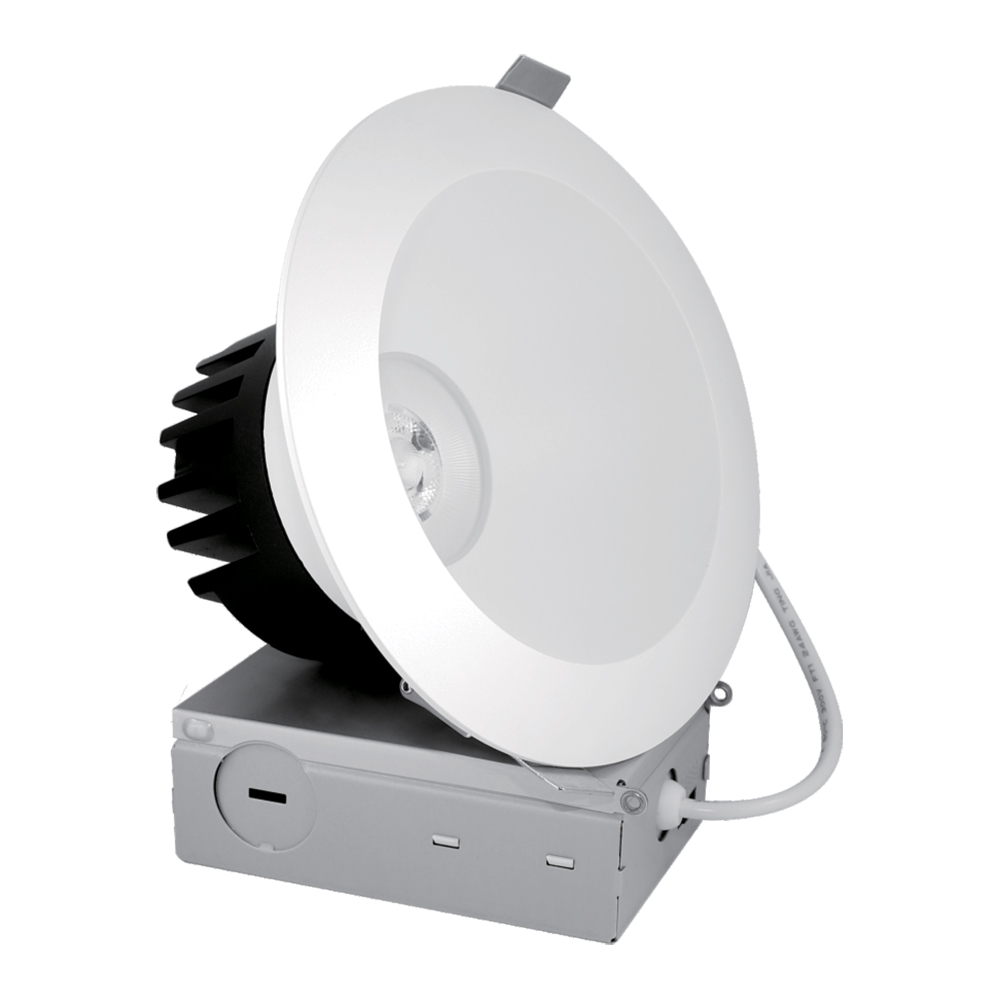

120-277V Dimmable LED 9W WH Recessed Downlight with COB 5CCT, FT6 Wire






Specifications
Model No.
RL-RA601WH5C
Category1
-
Category2
-
Collection
-
Finish
White
Glass/Shade
-
Fixture Material
Aluminum
Diameter
4"D
Length
-
Width
-
Height
2.5"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
9W
Lamp Type
COB LED
Power Factor
>0.9
Color Temperature
27/30/35/40/50K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
-
Delivered lumens
750/800/850/850/800 lumens
CRI
90
Dimmer List
Leviton 6674-722, 6674-752, 6674-726, Lutron DVRP-253P, MA-PRO, PD-5NE, RRD-PRO, GT-5NEM, CTRP-253P, NTRP-250, RRD-6NA.
Remark
LED Life 50,000 Hours, Can work with RL-RG608-PLATE
Location
Wet (Covered Ceiling Mount Only)
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379085469
Box Code 39
RL-RA601WH5C/30
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-
Unit Box Length
4.375"L
Unit Box Width
4.375"W
Unit Box Height
4.375"H
Unit Net Weight
0.77 lbs
Unit Gross Weight
0.88 lbs
Unit Cu. ft
0.048
Master Pack
30
Master Box Length
22.5"L
Master Box Width
13.75"W
Master Box Height
9.5"H
Master Gross Weight
24.2 lbs
Master Cu. ft
1.701
