4-1/8"D x 8-1/2"L x 6"W x 5-1/2"H

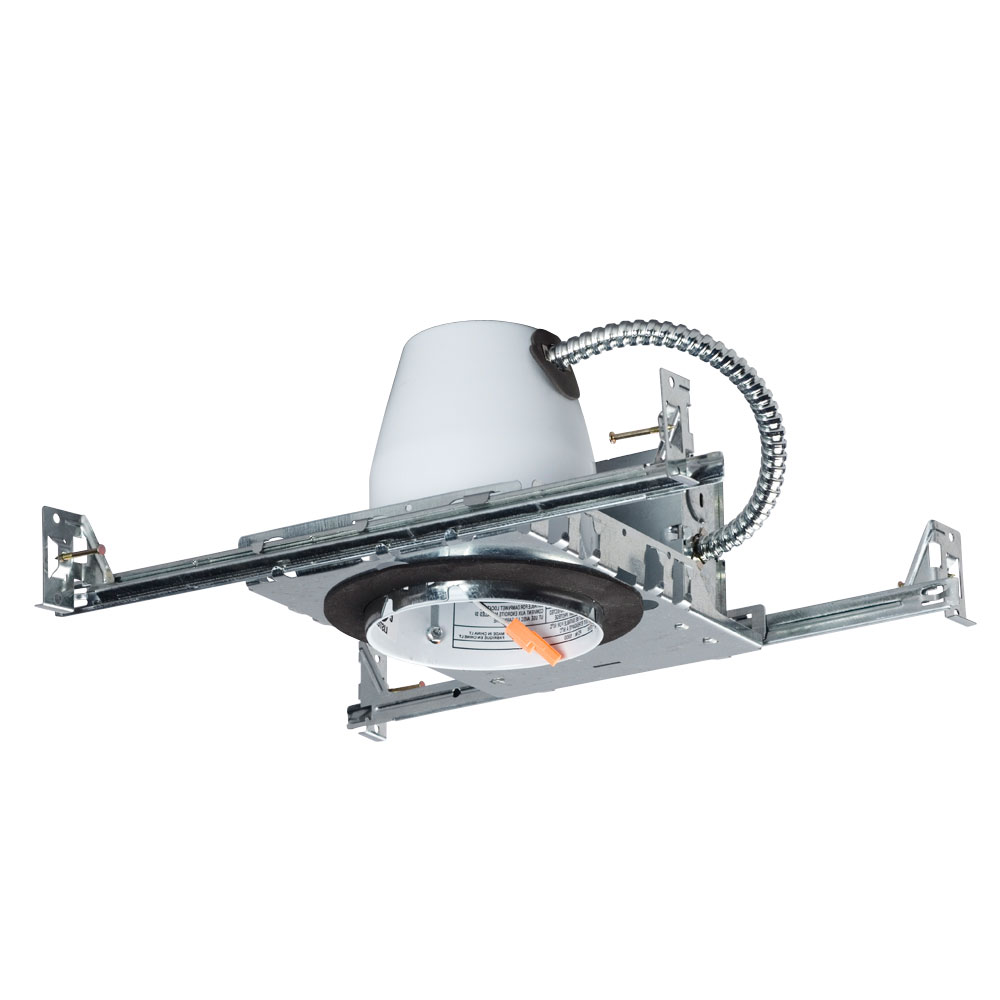

4" LED Dedicated IC Housing (For use in insulated and/or non insulated ceilings)






Specifications
Model No.
RL-RT2000AT
Category1
Recessed Lighting, 4" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
-
Glass/Shade
-
Fixture Material
Aluminum & Steel

Diameter
4.125"D
Length
8.5"L
Width
6"W
Height
5.5"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
13W
Lamp Type
LED Downlight
Power Factor
-
Color Temperature
-
Lamp included
Not Included
Dimming
-
Total Lumens
-
Delivered lumens
-
CRI
-

Dimmer List
-
Remark
AIRTIGHT-Complies with Washington State Energy Code ASTM_E283, Approved for insulated ceilings (IC)
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379080778
Box Code 39
RL-RT2000AT/6
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
-
Unit Box Width
-
Unit Box Height
-
Unit Net Weight
1.938 lbs
Unit Gross Weight
2.244 lbs
Unit Cu. ft
0

Master Pack
6
Master Box Length
20.472"L
Master Box Width
18.875"W
Master Box Height
6.496"H
Master Gross Weight
13.466 lbs
Master Cu. ft
1.453
Recessed Items
