5-1/2"D x 3.875(opening)"W x 1-7/8"H

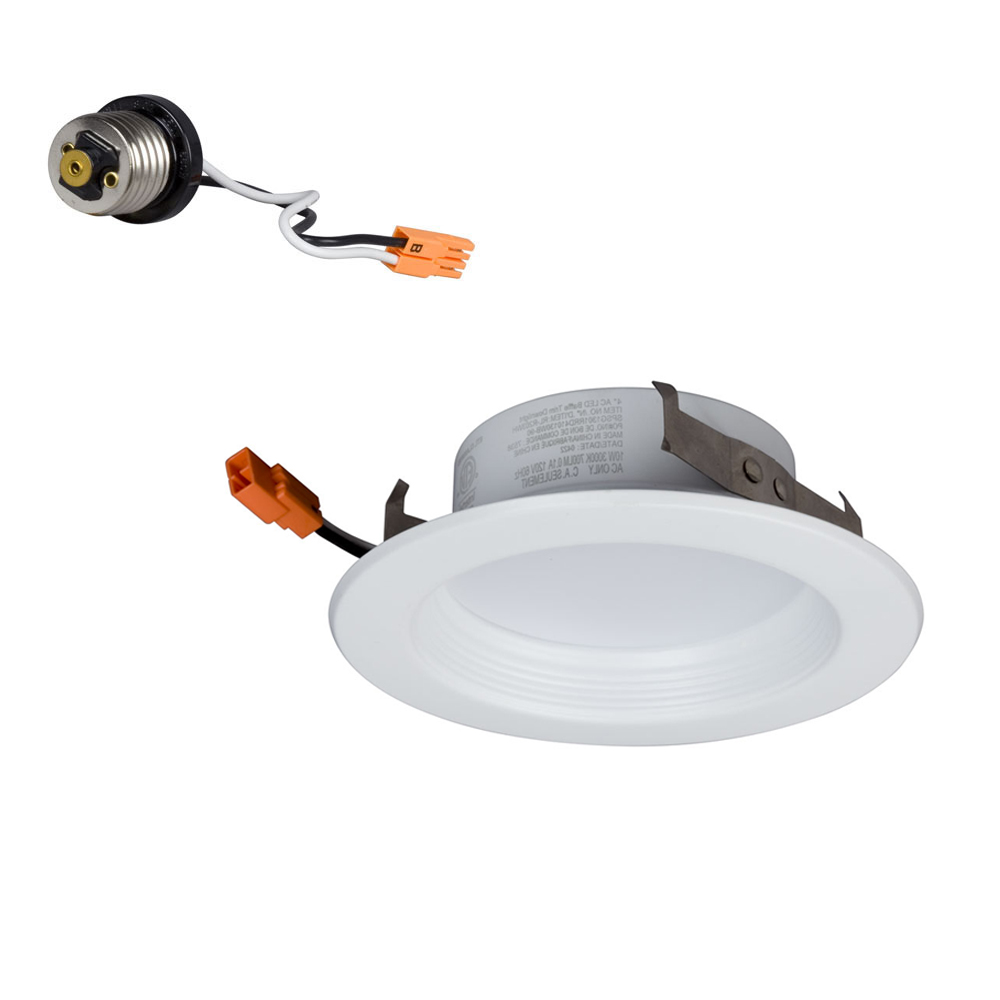

4" 120V AC LED Baffle Trim Downlight - in White finish, Driverless, Dimmable, 3000K - for most existing 4" remodel or new construction housings (includes Mounting Hardware & Medium Base Socket Adaptor)






Specifications
Model No.
RL-R202WH
Category1
Recessed Lighting, 4" Housings & Trims
Category2
Recessed Lighting, LED Housings & Trims
Collection
-
Finish
Satin White
Glass/Shade
Acrylic Lens
Fixture Material
Alum & PC

Diameter
5.5"D
Length
-
Width
3.875(opening)"W
Height
1.875"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
10W
Lamp Type
120V AC LED Module
Power Factor
>0.9
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
-
Delivered lumens
850 lumens
CRI
90

Dimmer List
Leviton 6672, 6674, RDL06, 752-DSM10, IPL06, Lurton SCL-153PH-WH, PWCL-153PH, DVCL-153P, CTCL-153P, S-600-WH-CSA, D-600, DSL06
Remark
LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379081997
Box Code 39
RL-R202WH/20
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
5.7"L
Unit Box Width
2.25"W
Unit Box Height
5.75"H
Unit Net Weight
0.25 lbs
Unit Gross Weight
0.34 lbs
Unit Cu. ft
0.043

Master Pack
20
Master Box Length
23.5"L
Master Box Width
12.5"W
Master Box Height
6.625"H
Master Gross Weight
8.36 lbs
Master Cu. ft
1.126
