5-1/2"D x 1"H

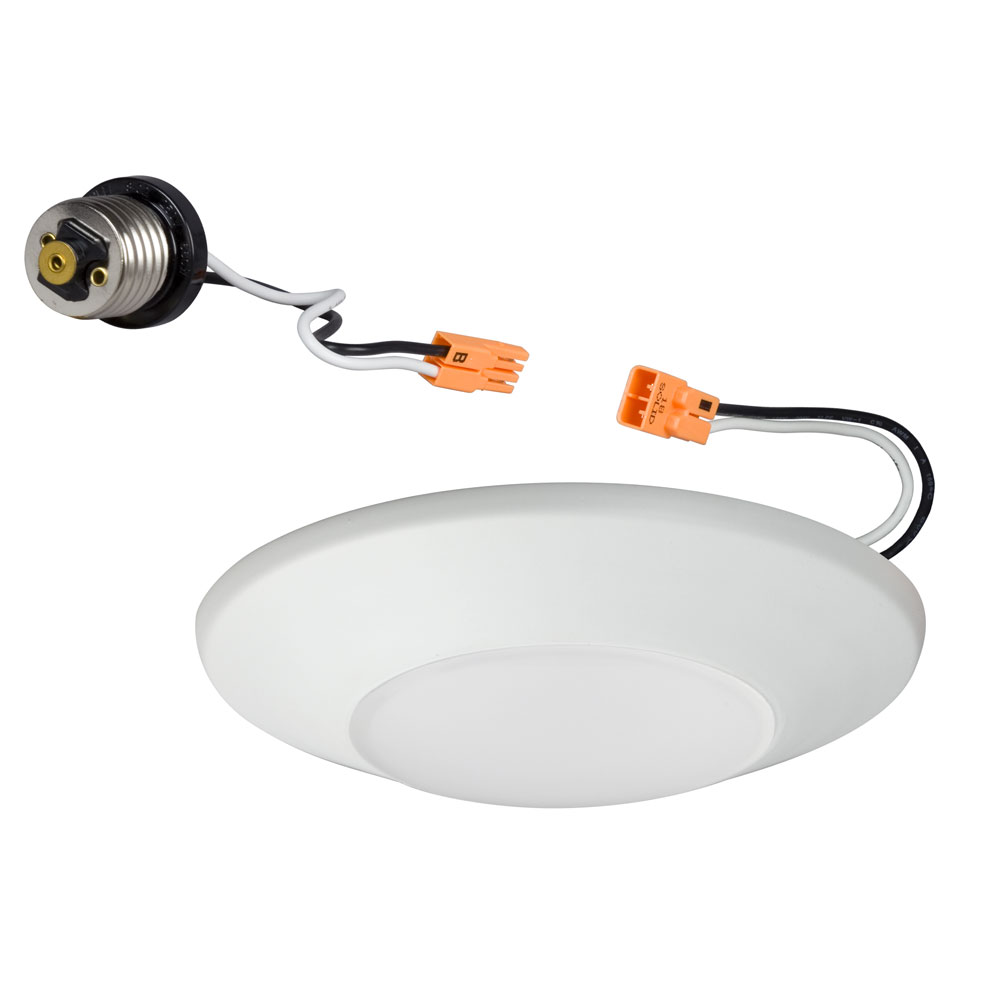

4" AC LED Surface or Recessed Disk Light - in White Finish, Dimmable, 3000K - for LED RL-RT2000AT Housing and Compatible with Most 4" Standard Recessed Incandescent Housings when used with includeed Mounting Hardware & Medium Base Socket Adaptor.






Specifications
Model No.
RL-C200WH
Category1
Recessed Lighting, 4" Housings & Trims
Category2
Ceiling Fixtures, Flush Mounts
Collection
-
Finish
White
Glass/Shade
White Acrylic Lens
Fixture Material
Alum & PC

Diameter
5.55"D
Length
-
Width
-
Height
1"H
Extension
-
Overal Height
-
Arm Length
-

Lamp Quantity
-
Lamp Wattage
10W
Lamp Type
120V AC LED Module
Power Factor
>0.98
Color Temperature
3000K
Lamp included
Included
Dimming
Dimmable-TRIAC/ELV
Total Lumens
-
Delivered lumens
690 lumens
CRI
90

Dimmer List
Triac & ELV Dimming, Lutron CTCL-153PD, S-600P, CT-600P, DV-603P, SELVB-300P, SELV-300P, SCL-153PR-WH, Leviton 6672, 6161, VPI06, IPI06, 6615-P
Remark
LED Life 50,000 Hours
Location
Damp
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent

UPC
775379081973
Box Code 39
RL-C200WH/20
I 2 of 5
-
GTIN
-
SKU
-

Glass Length
-
Glass Width
-
Glass Diameter
-
Glass Height
-
Glass Extension
-

Unit Box Length
5.5"L
Unit Box Width
2.375"W
Unit Box Height
5.5"H
Unit Net Weight
0.44 lbs
Unit Gross Weight
0.55 lbs
Unit Cu. ft
0.042

Master Pack
20
Master Box Length
12.25"L
Master Box Width
12.25"W
Master Box Height
12.5"H
Master Gross Weight
11.88 lbs
Master Cu. ft
1.086
Recessed Items
